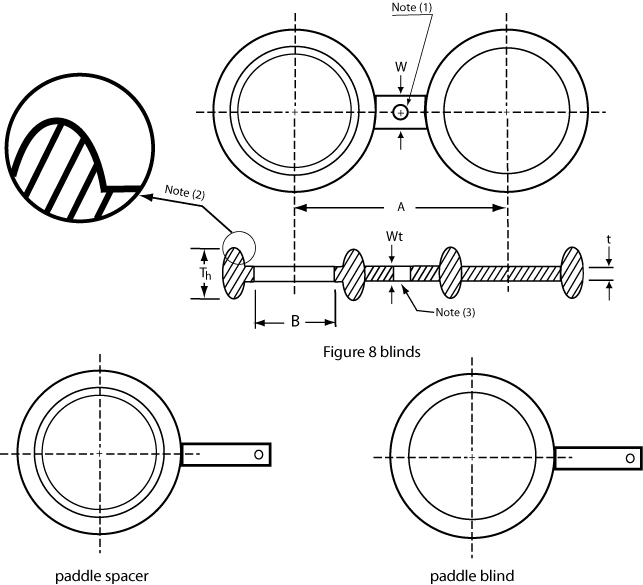

Figure 8 Blinds

Ring Type Joint

Flange Ratings:

Blinds
Dimensions of class 900# male RTJ Figure 8 Blanks									Weight (approx. lbs)
NPS	Inside Diameter B, in.	Centerline Dimension A, in.	Thickness t, in.	Web Width W,in.	Handle Length L, in	Web Hole Size	Ring Number	Ring Height Th, in.	Paddle Blinds	Paddle Spacers	Figure 8 Blinds
1/2	0.84	3.25	0.38	1.50	5	7/8	R12	0.942	0.5	0.5	0.5
3/4	1.05	3.50	0.38	1.75	5	7/8	R14	0.942	0.5	0.5	0.5
1	1.32	4.00	0.38	2.00	5	1	R16	0.942	0.5	0.5	0.5
1-1/4	1.66	4.38	0.50	2.00	5	1	R18	1.062	0.5	0.5	1
1-1/2	1.90	4.88	0.50	2.50	5	1-1/8	R20	1.062	1	0.5	1.5
2	2.38	6.50	0.62	2.00	5	1	R24	1.307	2.5	1	3
2-1/2	2.88	7.50	0.75	2.62	6	1-1/8	R27	1.437	3	1.5	4.5
3	3.50	7.50	0.75	2.62	5	1	R31	1.437	4.5	2	6.5
4	4.50	9.25	1.00	2.88	6	1-1/4	R37	1.687	9	4.5	13
5	5.56	11.00	1.12	2.88	6	1-3/8	R41	1.807	12	5	17
6	6.62	12.50	1.25	2.88	6	1-1/4	R45	1.937	23	12	35
8	8.62	15.50	1.62	3.12	7	1-1/2	R49	2.307	44	15	59
10	10.75	18.50	1.88	4.75	7	1-1/2	R53	2.567	71	20	91
12	12.75	21.00	2.25	4.75	7	1-1/2	R57	2.937	114	30	144
14	14.00	22.00	2.38	4.75	7	1-5/8	R62	3.255	152	48	200
16	16.00	24.25	2.75	5.00	7	1-3/4	R66	3.625	220	66	286
18	18.00	27.00	3.00	5.25	8	2	R70	4.000	291	78	369
20	20.00	29.50	3.38	5.00	8	2-1/8	R74	4.38	395	97	492
24	24.00	35.50	3.88	5.50	8	2-5/8	R78	5.192	624	132	756
