Y Strainers are fabricated. Quick opening closures are available. ANSI B31.3 and other codes are available.
|
|
|

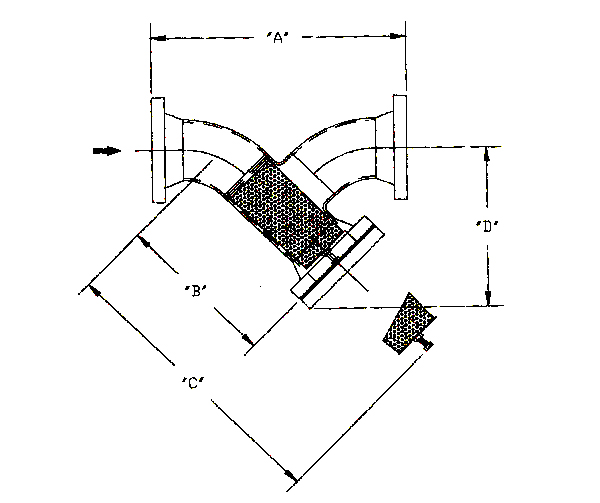

150# Dimensional Data
|
| Nozzle Size |
A |
B |
C (clearance to remove top) |
D |
Weight (LBS) |
| 2" |
13.250" |
9.375" |
17.250" |
9.125" |
29 |
| 3" |
17.437 |
11.750 |
22.250 |
11.375 |
43 |
| 4" |
20.375 |
14.500 |
27.250 |
15.687 |
78 |
| 6" |
28.125 |
18.500 |
34.000 |
17.062 |
158 |
| 8" |
35.375 |
23.000 |
41.750 |
21.375 |
286 |
| 10" |
41.312 |
32.000 |
49.500 |
25.500 |
454 |
| 12" |
48.750 |
32.000 |
57.750 |
30.000 |
615 |
| 14" |
55.312 |
35.687 |
63.875 |
33.125 |
814 |
| 16" |
61.125 |
39.000 |
69.500 |
36.250 |
1022 |
| 18" |
68.500 |
43.750 |
77.750 |
39.750 |
1263 |
| 20" |
75.249 |
41.187 |
85.250 |
43.937 |
1562 |
| 24" |
86.500 |
54.000 |
94.250 |
49.250 |
2144 |
