Bleed Rings
A convenient method of providing drain, vent, or sampling conditions.
EBG offers precision machined bleed rings in virtually any material that can be machined. I deal for use in plastic or fiberglass
piping systems. Standard tap connection is 1/2"NPT, 1/2" Socket Weld. As an option, 3/4" NPT or 3/4" Socket Weld are available at no extra charge.
Non-standard taps must be specified at time of order. Multiple tap connection arrangement also available.
 |
| Line Size |

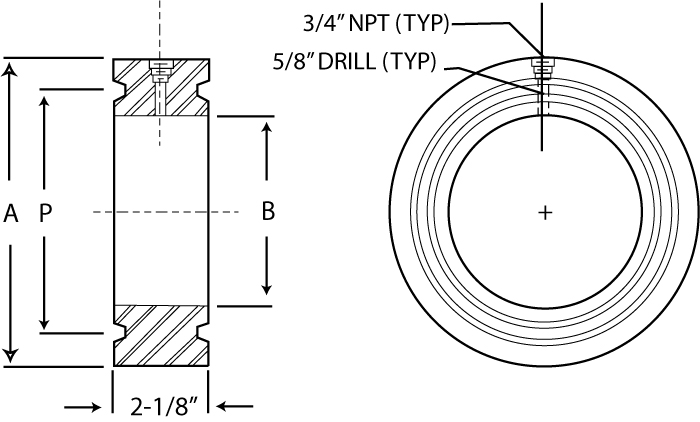

DIMENSIONAL DATA |
| 300# / 400# / 600# |
900# |
1500# |
2500# |
| A | B | RING | A | B | RING | A | B | RING | A | B | RING |
| 1" |
2.750 |
1.320 |
R-16 |
2.812 |
1.320 |
R-16 |
2.812 |
1.320 |
R-16 |
3.250 |
1.320 |
R-18 |
| 1-1/2" |
3.562 |
1.900 |
R-20 |
3.625 |
1.900 |
R-20 |
3.625 |
1.900 |
R-20 |
4.500 |
1.900 |
R-23 |
| 2" |
4.250 |
2.375 |
R-23 |
4.875 |
2.375 |
R-24 |
4.875 |
2.375 |
R-24 |
5.250 |
2.375 |
R-26 |
| 2-1/2" |
5.000 |
2.875 |
R-26 |
5.375 |
2.875 |
R-27 |
5.375 |
2.875 |
R-27 |
5.875 |
2.875 |
R-28 |
| 3" |
5.750 |
3.500 |
R-31 |
6.125 |
3.500 |
R-31 |
6.625 |
3.500 |
R-35 |
6.625 |
3.500 |
R-32 |
| 4" |
6.875 |
4.500 |
R-37 |
7.125 |
4.500 |
R-37 |
7.625 |
4.500 |
R-39 |
8.000 |
4.500 |
R-38 |
| 6" |
9.500 |
6.625 |
R-45 |
9.500 |
6.625 |
R-45 |
9.750 |
6.625 |
R-46 |
11.000 |
6.625 |
R-47 |
| 8" |
11.875 |
8.625 |
R-49 |
12.125 |
8.625 |
R-49 |
12.500 |
8.625 |
R-50 |
13.375 |
8.625 |
R-51 |
| 10" |
14.000 |
10.750 |
R-53 |
14.250 |
10.750 |
R-53 |
14.625 |
10.750 |
R-54 |
16.750 |
10.750 |
R-55 |
| 12" |
16.250 |
12.750 |
R-57 |
16.500 |
12.750 |
R-57 |
17.250 |
12.750 |
R-58 |
19.500 |
12.750 |
R-60 |
