Bleed Rings (Test Inserts)
A convenient method of providing drain, vent, or sampling conditions.
EBG offers precision
machined bleed rings in virtually any material that can be machined. Ideal for use in plastic or fiberglass
piping systems.
Standard
tap connection is 1/2"NPT, 1/2" Socket Weld. As an option, 3/4" NPT or 3/4" Socket Weld are available at no extra charge.
Non-standard taps must be specified at time of order. Multiple tap connection arrangement also available.

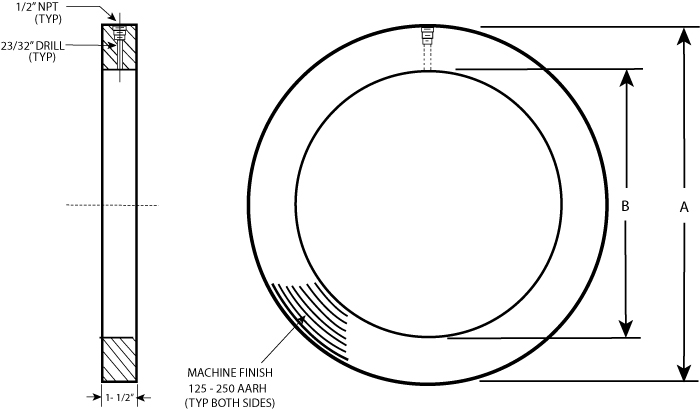

Line Size
|
Dimensions |
B |
Weights |
|
150#
|
300#
|
600#
|
900#
|
1500#
|
150#
|
300#
|
600#
|
900#
|
1500#
|
| 1" | 2.500 | 2.750 | 2.750 | 3.000 |
3.000 | 1.320 | 2 | 2 | 2 | 3 | 3 |
| 1-1/2" | 3.250 | 3.625 | 3.625 | 3.750 |
3.750 | 1.900 | 3 | 3 | 3 | 4 | 4 |
| 2" | 4.000 | 4.250 | 4.250 | 5.500 |
5.500 | 2.375 | 4 | 5 | 5 | 9 | 9 |
| 2-1/2" | 4.750 | 5.000 | 5.000 | 6.375 |
6.375 | 2.875 | 5 | 6 | 6 | 11 | 11 |
| 3" | 5.250 | 5.750 | 5.750 | 6.500 |
6.750 | 3.500 | 6 | 8 | 8 | 11 | 12 |
| 4" | 6.750 | 7.000 | 7.500 | 8.500 |
8.125 | 4.500 | 9 | 11 | 13 | 16 | 16 |
| 6" | 8.625 | 9.750 | 10.375 | 11.250 |
11.000 | 6.625 | 12 | 19 | 23 | 30 | 28 |
| 8" | 10.875 | 12.000 | 12.500 | 14.000 |
13.750 | 8.625 | 18 | 27 | 31 | 44 | 42 |
| 10" | 13.250 | 14.125 | 15.625 | 17.000 |
17.000 | 10.750 | 24 | 32 | 47 | 62 | 62 |
| 12" | 16.000 | 16.500 | 17.750 | 19.375 |
20.250 | 12.750 | 37 | 43 | 57 | 77 | 89 |
