Orifice Flange Meter Tube Assembly
Standard Meter Tubes: Are fabricated from A-106B cold drawn seamless pipe,
or honed meter tubing with the outer ends beveled ready to weld into the line.
One 1/2" 3000# half coupling on downstream section with mircometer readings furnished for customers records. For line sizes smaller than 2" a honed flow tube
is recommended.
 |
Standard Options
- Flanged outer ends: Using nominal flanges manufactured from a compatible material.
- Threaded Ends: For ease of installation into the line.
- Single & Dual Chamber fittings: For those lines that can not be shut down during periodic maintenance and plate replacement.
- Other materials and designs available upon request.

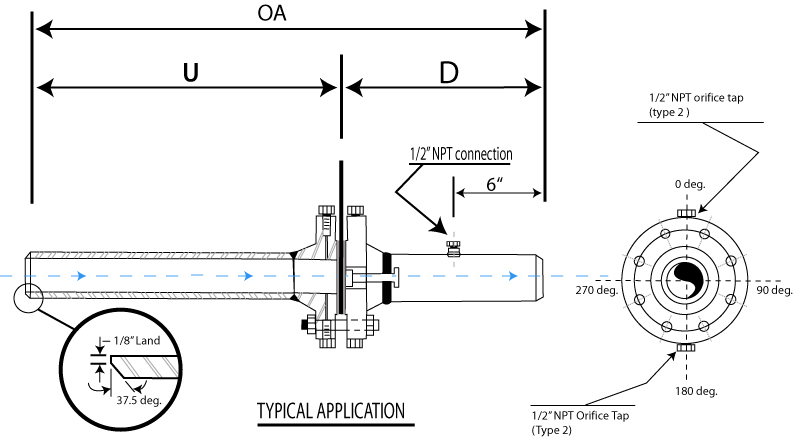

| Orifice Flange Meter Tube Assembly | |||||
| Pipe Size | U | D | OA | Pipe I.D. | |
| S/40 | S/80 | ||||
| 2" | 5' -0" | 3' -0" | 8' -0" | 2.067" | 1.939" |
| 3" | 6' -0" | 4' -0" | 10' -0" | 3.068 | 2.900 |
| 4" | 8' -0" | 4' -0" | 12' -0" | 4.026 | 3.826 |
| 6" | 12' -0" | 5' -0" | 17' -0" | 6.065 | 5.761 |
| 8" | 15' -0" | 5' -0" | 20' -0" | 7.981 | 7.625 |
| 10" | 19' -0" | 6' -0" | 25' -0" | 10.020 | 9.564 |
| 12" | 21' -0" | 7' -0" | 28' -0" | 11.938 | 11.376 |
Lengths meet AGA Figure 3C 0.75 Beta Ratio (12" size at 0.73 Beta Ratio). All sizes meet AGA Figure 3A at 0.75 Beta Ratio using line-type straightening vane.
- Line size
- Flange rating and type
- Pipe I.D.
- Ends (beveled, flanged, threaded, other)
- Inspection and testing requirements
